Diamond burnishing tool variable

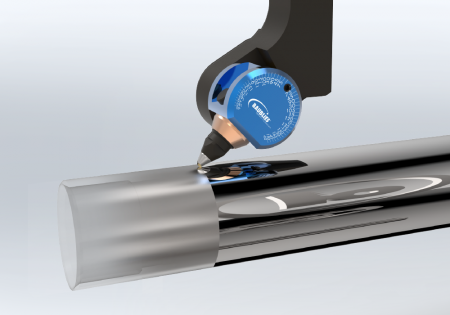

Strength that masters every ride. The front fork of mountain bikes is smoothed and reinforced to achieve maximum strength and resilience. This allows it to withstand even the toughest trails and ensures maximum safety and performance.
Task
- Smoothing and strengthening the front fork of a mountain bike
- Higher strength of the front fork is to withstand the stresses of mountain biking
Solution
- Diamond burnishing tool variable
- Speed: 150 rpm
- Infeed: 0.05–0.02 mm/rev
Customer Benefit
Breakage test in the bending machine:
- The average bending cycle after turning/grinding was 180,000 cycles
- After machining turning and diamond burnishing with the Baublies tool, 3,000,000 cycles were achieved
- Number of load cycles increased by 16 times
